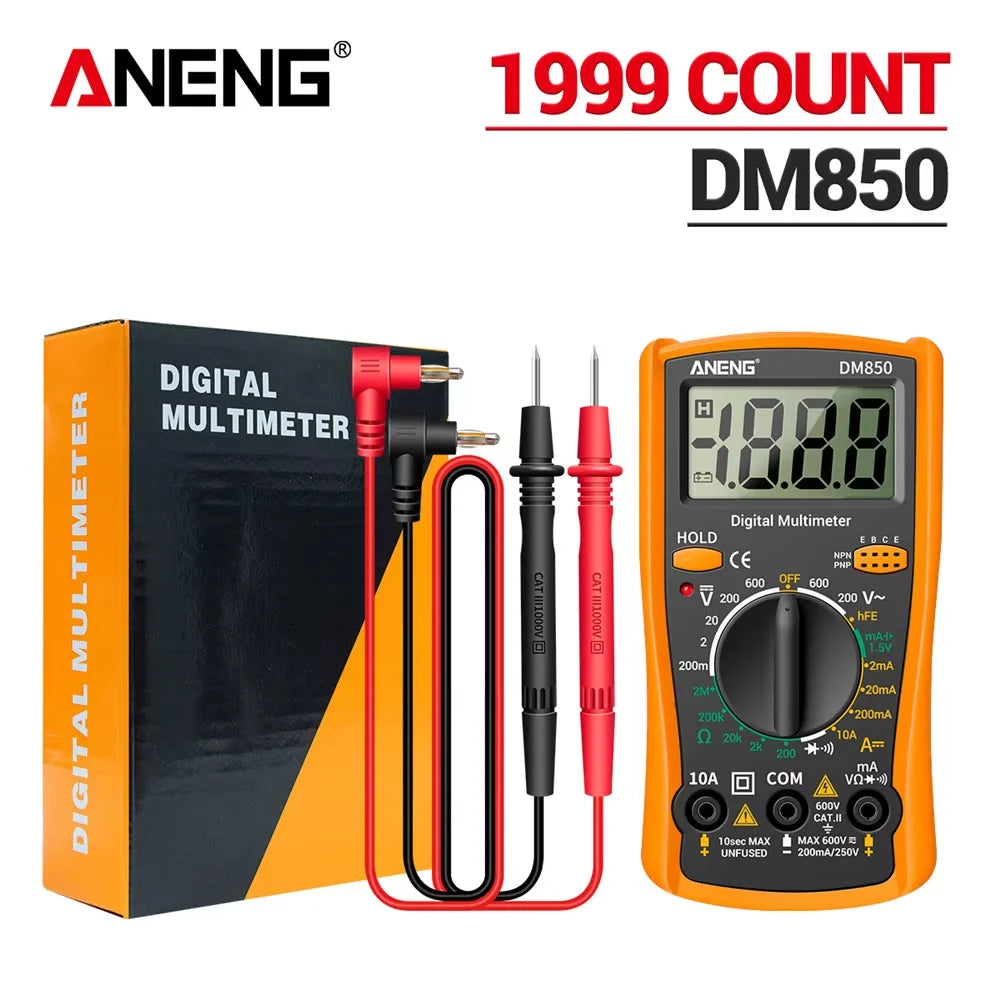

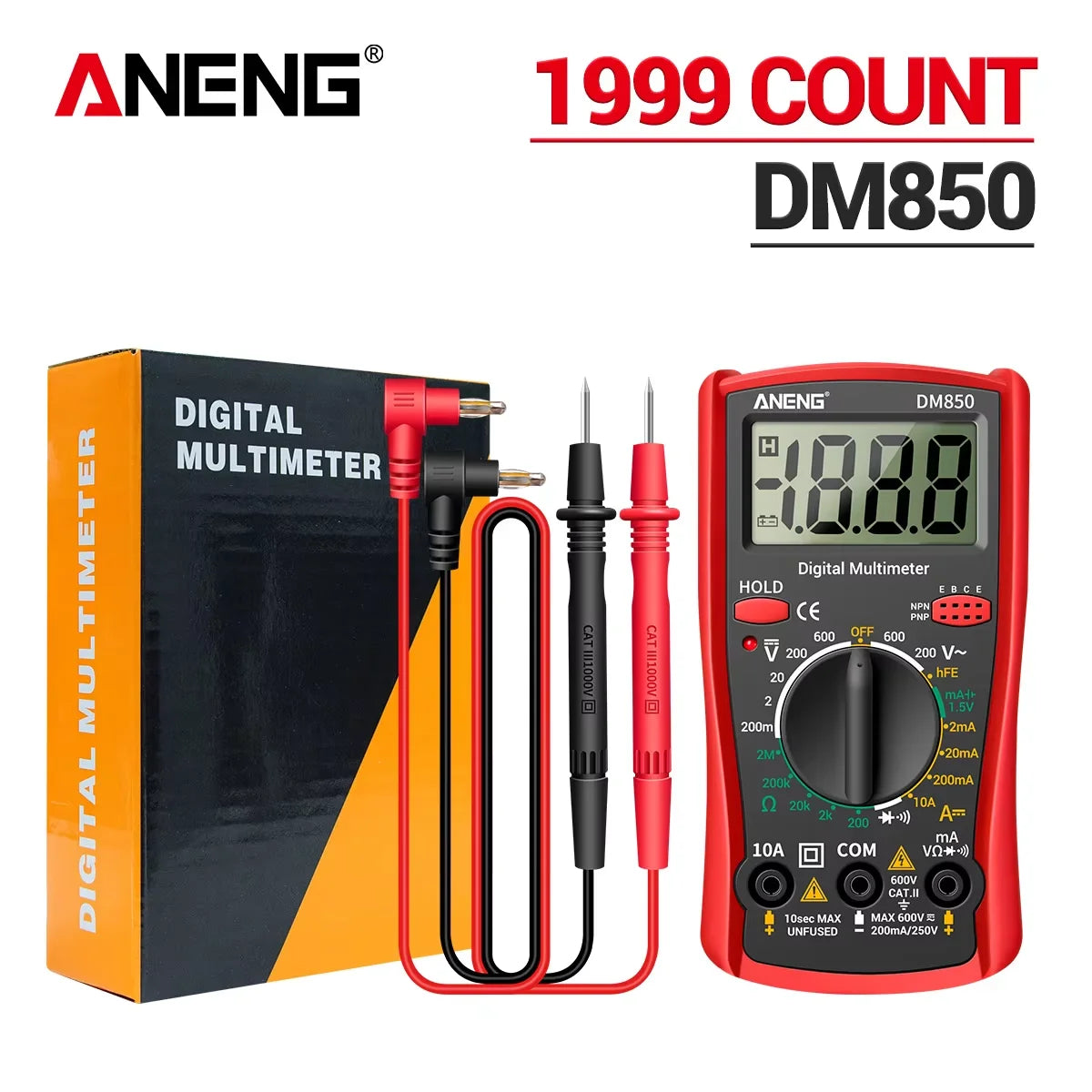

ANENG DM850 Handheld Digital Multimeter Automatic 1999 Count AC/DC Current Voltage Buzzer Resistance Diode Electrician Tes
ANENG DM850 Handheld Digital Multimeter Automatic 1999 Count AC/DC Current Voltage Buzzer Resistance Diode Electrician Tes
Verfügbarkeit für Abholungen konnte nicht geladen werden
SPECIFICATIONS
AC Current: /
AC Voltage: 200V/600V
AC/DC Voltage: Yes
Battery Included: no
Battery operated: 6F22 9V battery
Brand Name: ANENG
Certification: CE
Choice: yes
DC Current: 200uA/2000uA/20mA/200mA/10A
DC Voltage: 200mV/2000mV/20V/200V/600V
DIY Supplies: Electrical
Data Record: Yes
Data hold: Yes

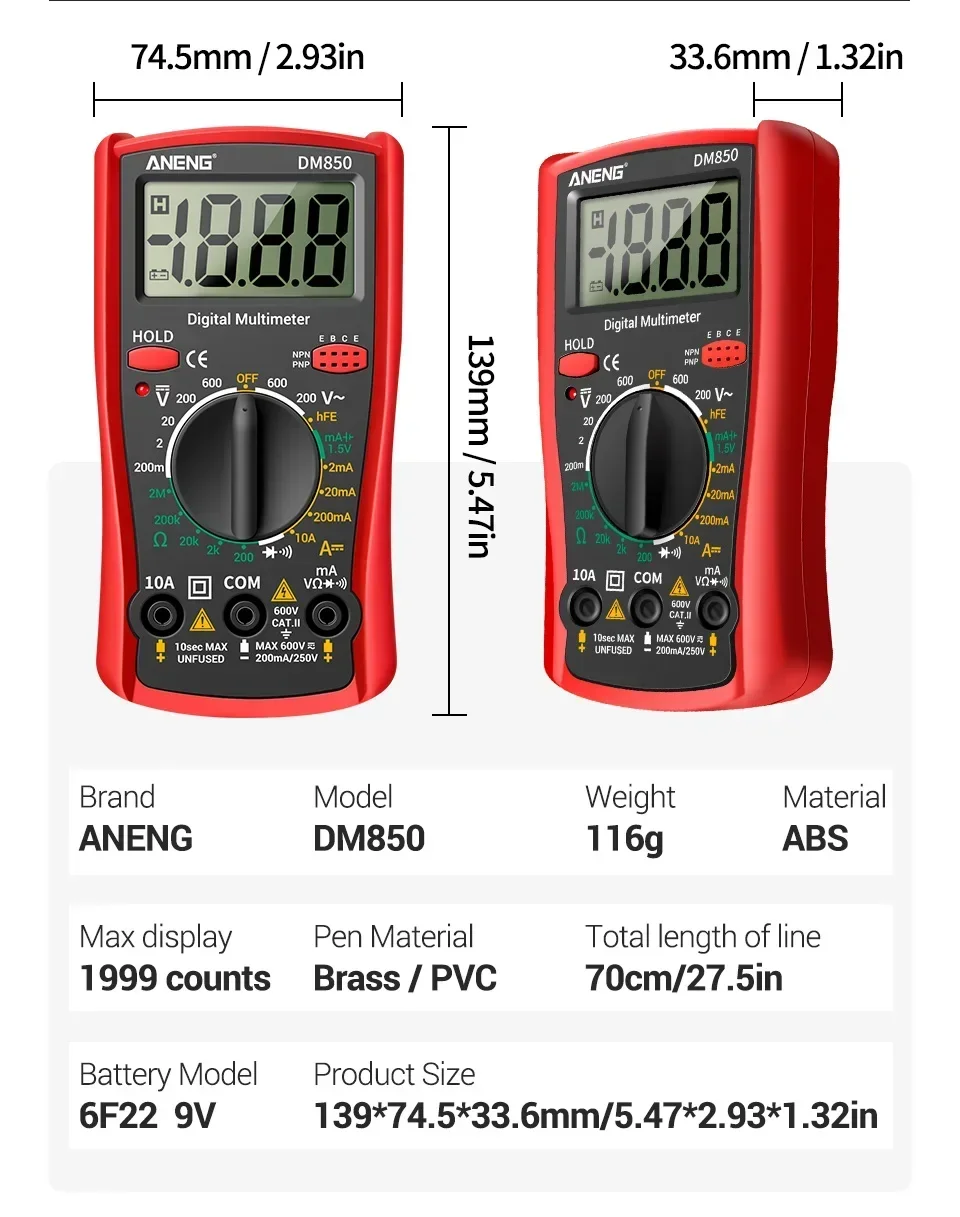

Dimensions: 139*74.5*33.6MM
Display Type: Digital Display
Display(LCD): 1999 Counts
High-concerned chemical: None
Is Smart Device: no
Measuring Capacitance Range: Eletrician Tool
Measuring Inductance Range: 45Hz~450Hz
Measuring Resistance Range: 200/2000/20k/200k/2000k
Model Number: DM850 Digital Multimeter
On-off buzzer: Yes
Operating Mode: Manual Range
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
Semi-finishedproduct: No
Test lead material: PVC/brass
Total wire length: 70cm/27.5in
Weight: 116g
General:

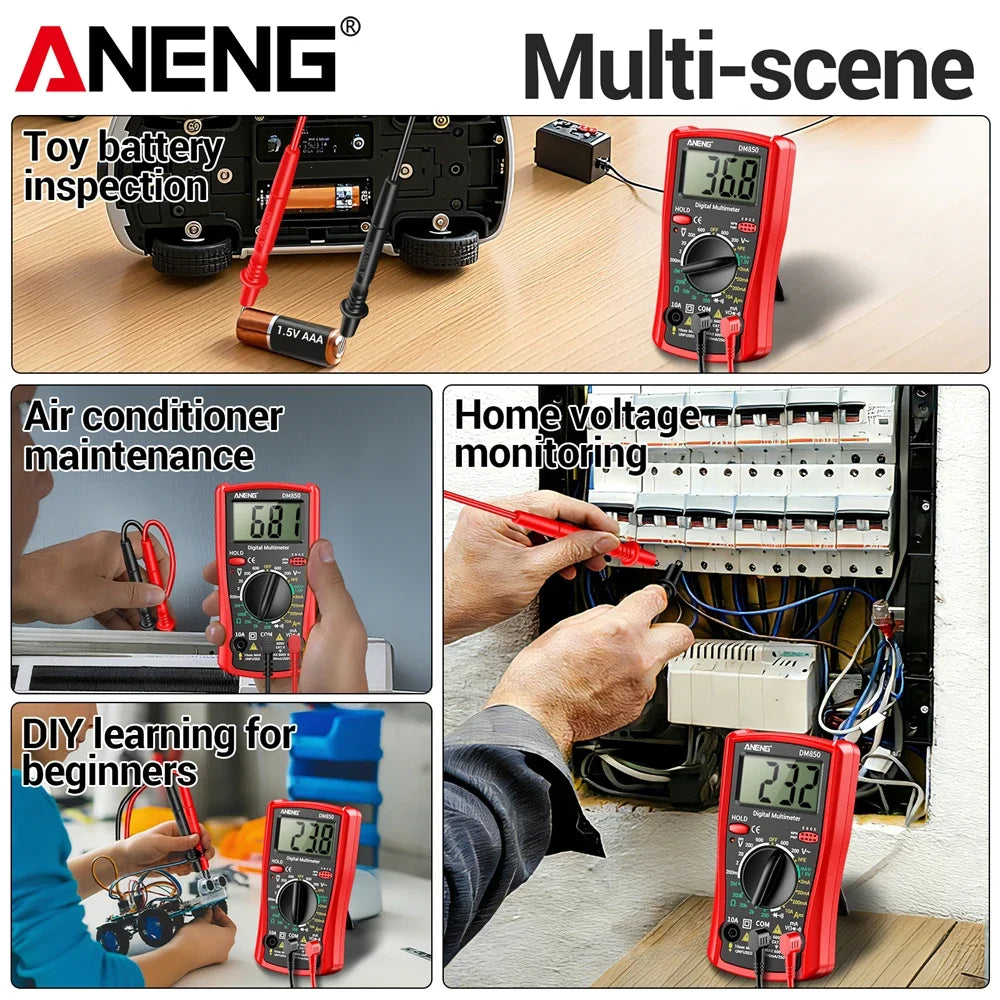

This instrument is a compact pocket-sized digital multimeter for measuring AC&DC voltage,DC Current,Resistance and Diode.Also provide Temperature,audible continuity test function or can be used as single generator.Full range overload protection and low battery indication are provided.They are the ideal instrument for use in fields,such as laboratory,workshop,DIYers,and the home applications.

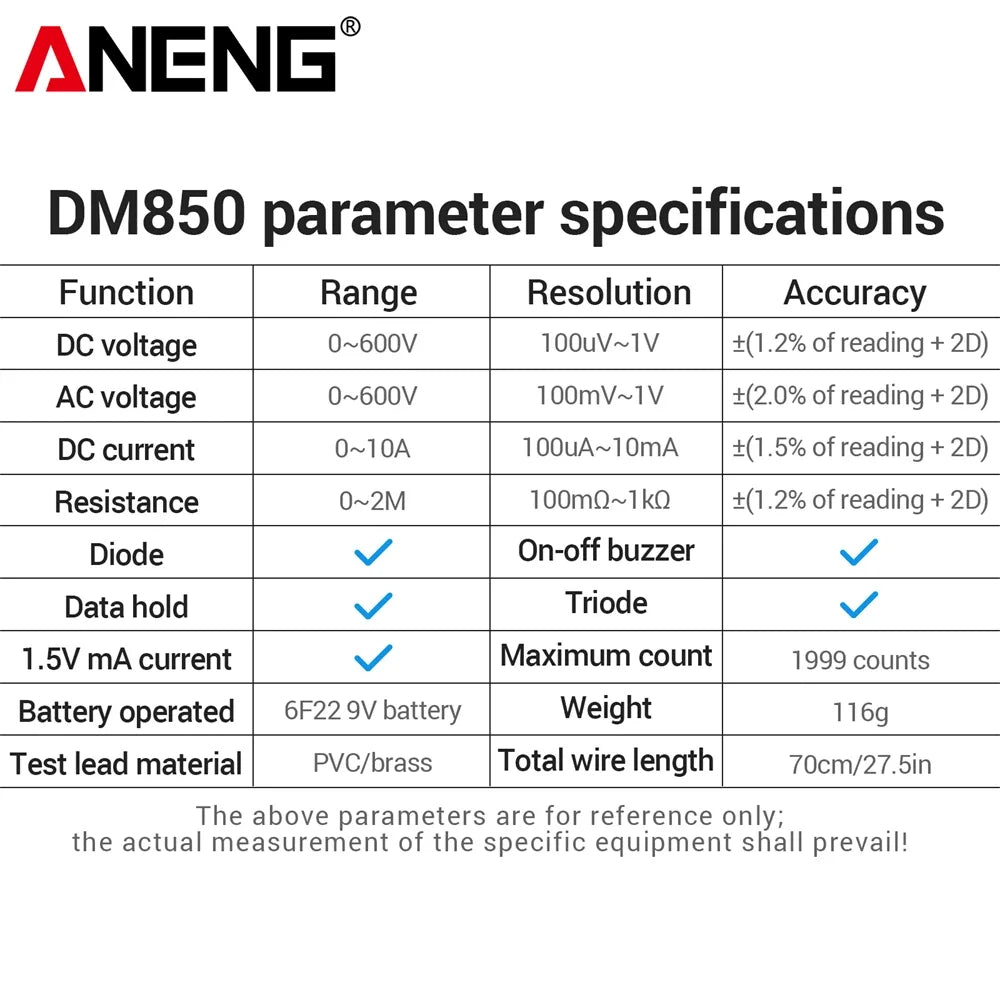

Specification:
Function |
Range |
Accuracy |
DC Voltage |
200mV |
±(2% of rdg+3D) |
2000mV/20V/200V |
±(2% of rdg+5D) |
|
600V |
±(2.5% of rdg+5D) |
|

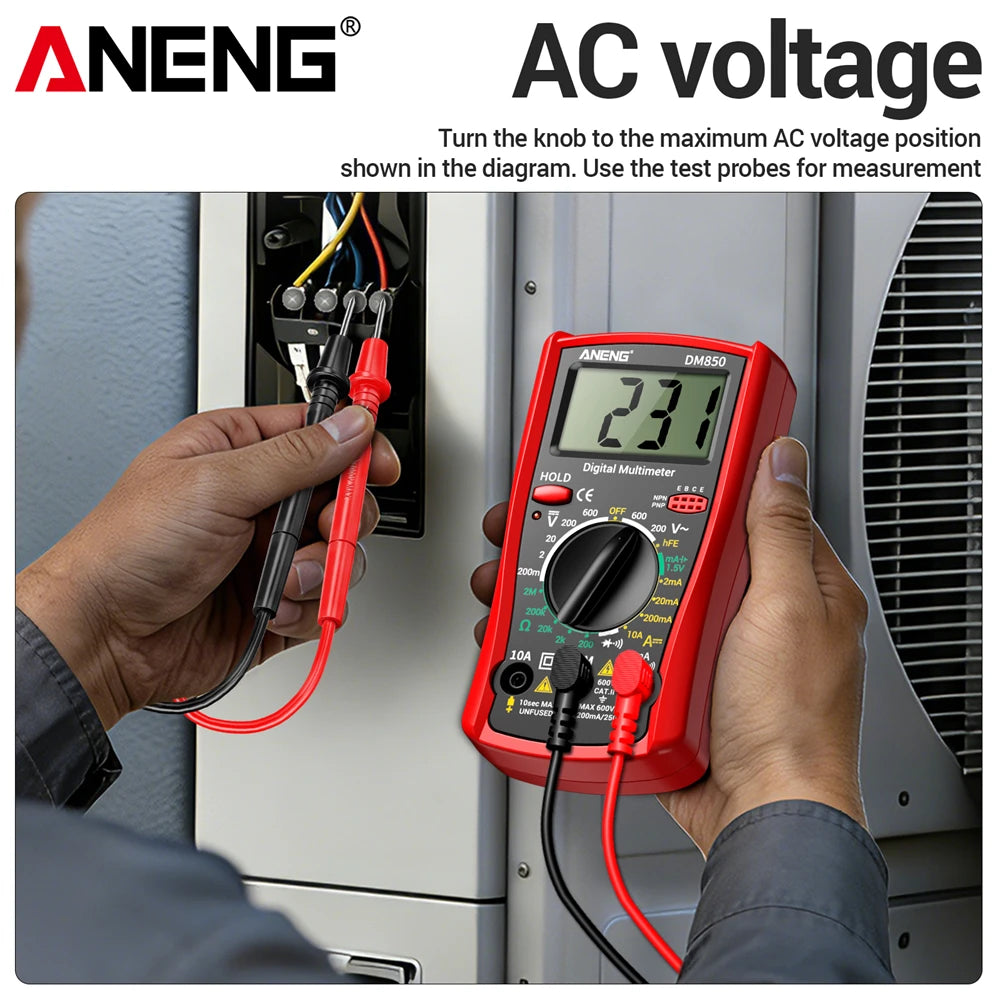

AC Voltage |
200V/600V |
±(2% of rdg+10D) |
Frequency Range |
45Hz~450Hz |
|
Audible Continuity Test |
Yes |
|
DC Current |
200uA/2000uA/20mA |
±(2% of rdg+2D) |
200mA |
±(2.5% of rdg+2D) |
|
10A |
±(2.5% of rdg+10D) |
|
Resistance |
200Ω |
±(2.5% of rdg+10D) |
2000Ω/20kΩ/200kΩ/2000kΩ |
±(2.5% of rdg+4D) |
|
Overload Protection |
15 second |

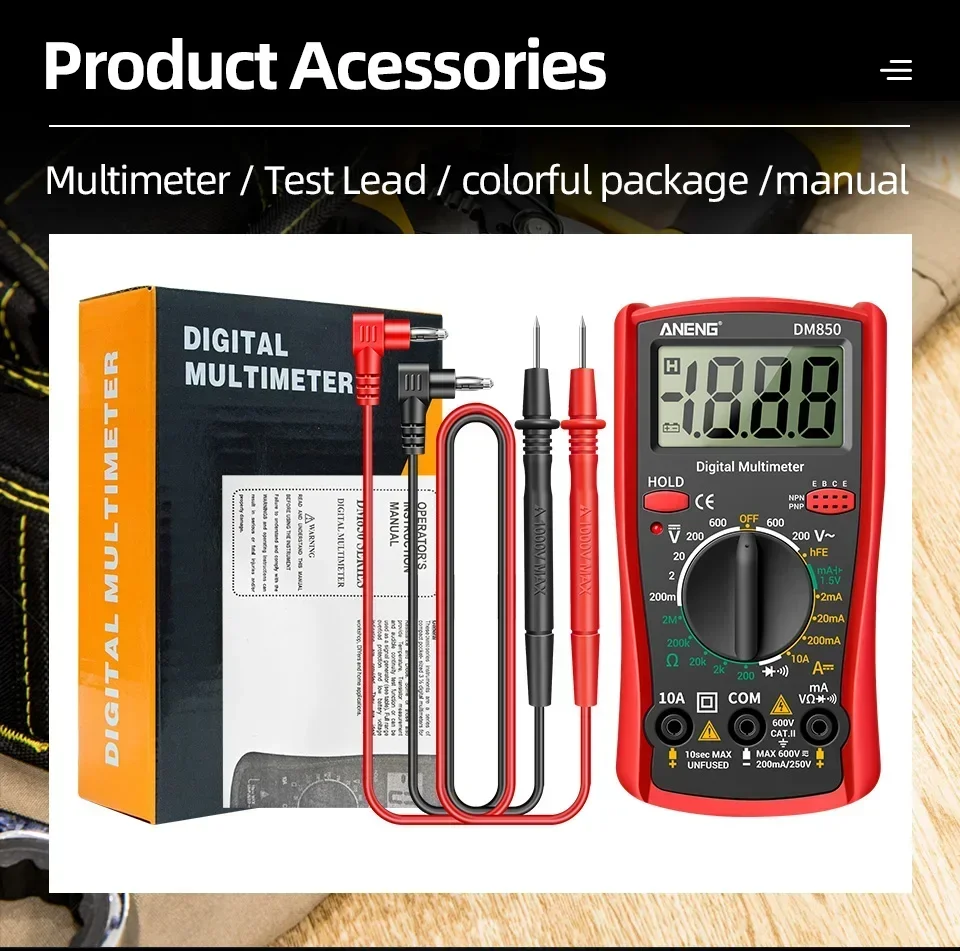

Package:（Without Battery）
1*Multimeter
1*test leads
1*manual
1*outer packing box(by option)
1*storage bag(by option)
1*16pc test probe(by option)
